Heavy-Duty UTV Winch Mount Bracket for John Deere Gator XUV HPX Utility Vehicles
Heavy-Duty UTV Winch Mount Bracket for John Deere Gator XUV HPX Utility Vehicles
Out of stock

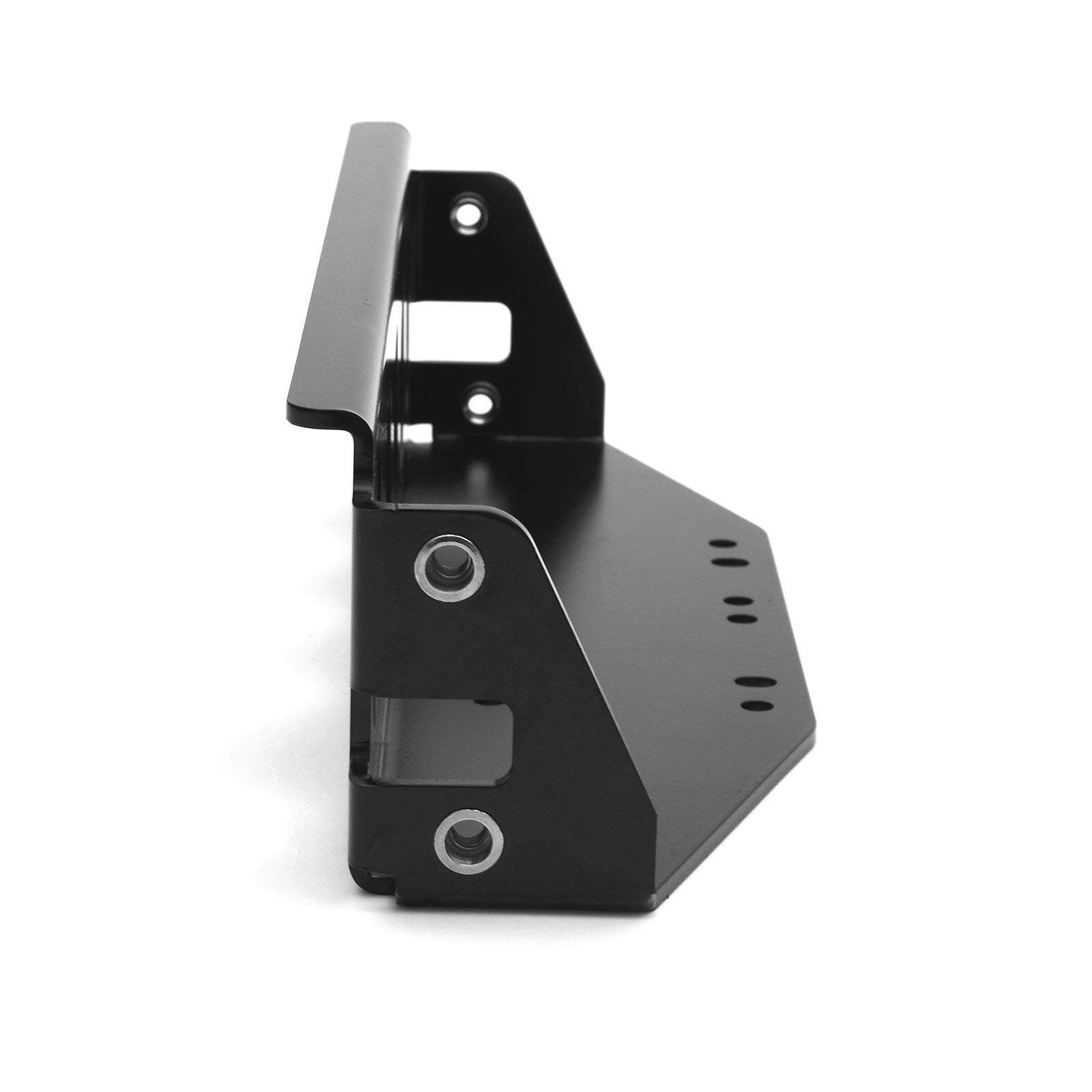

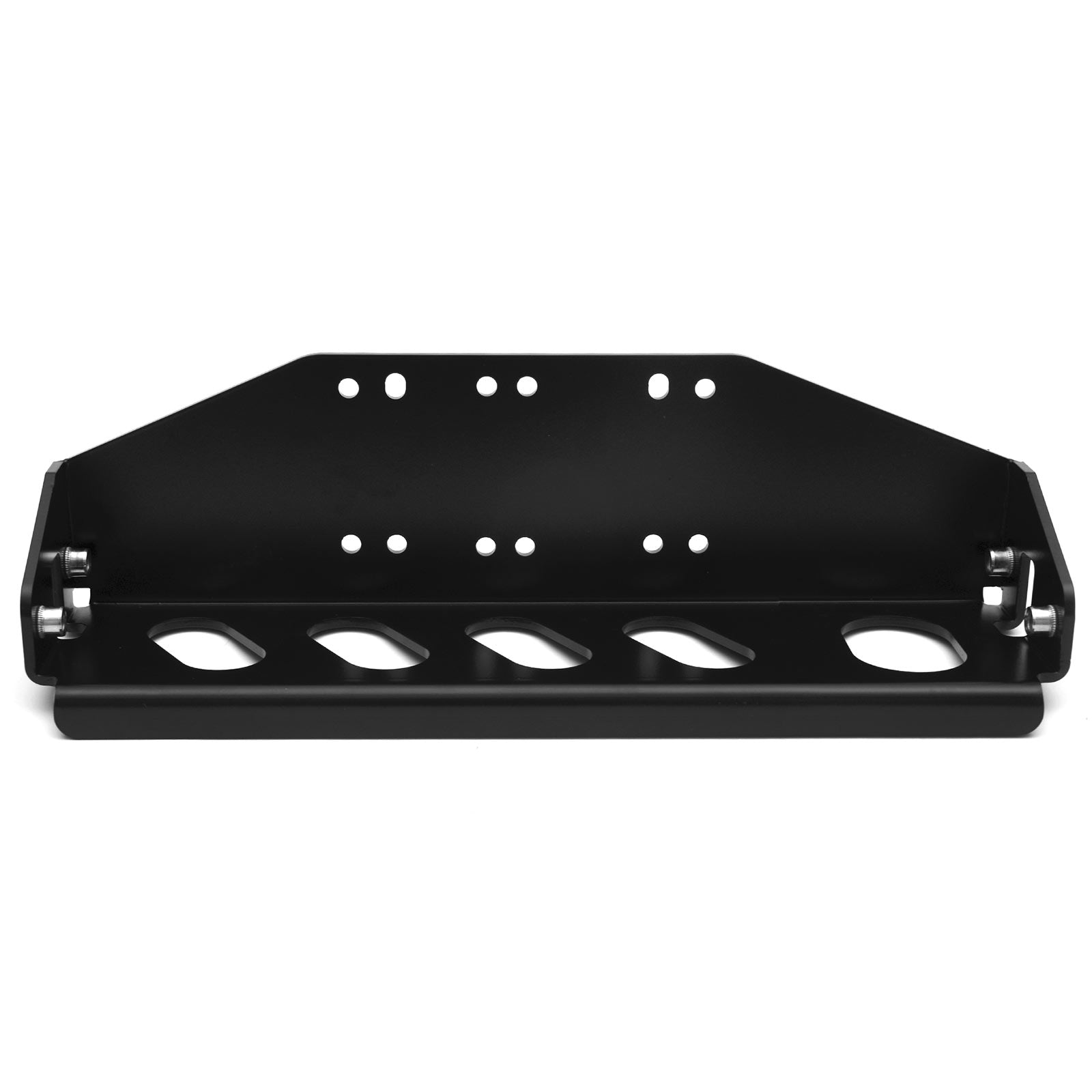

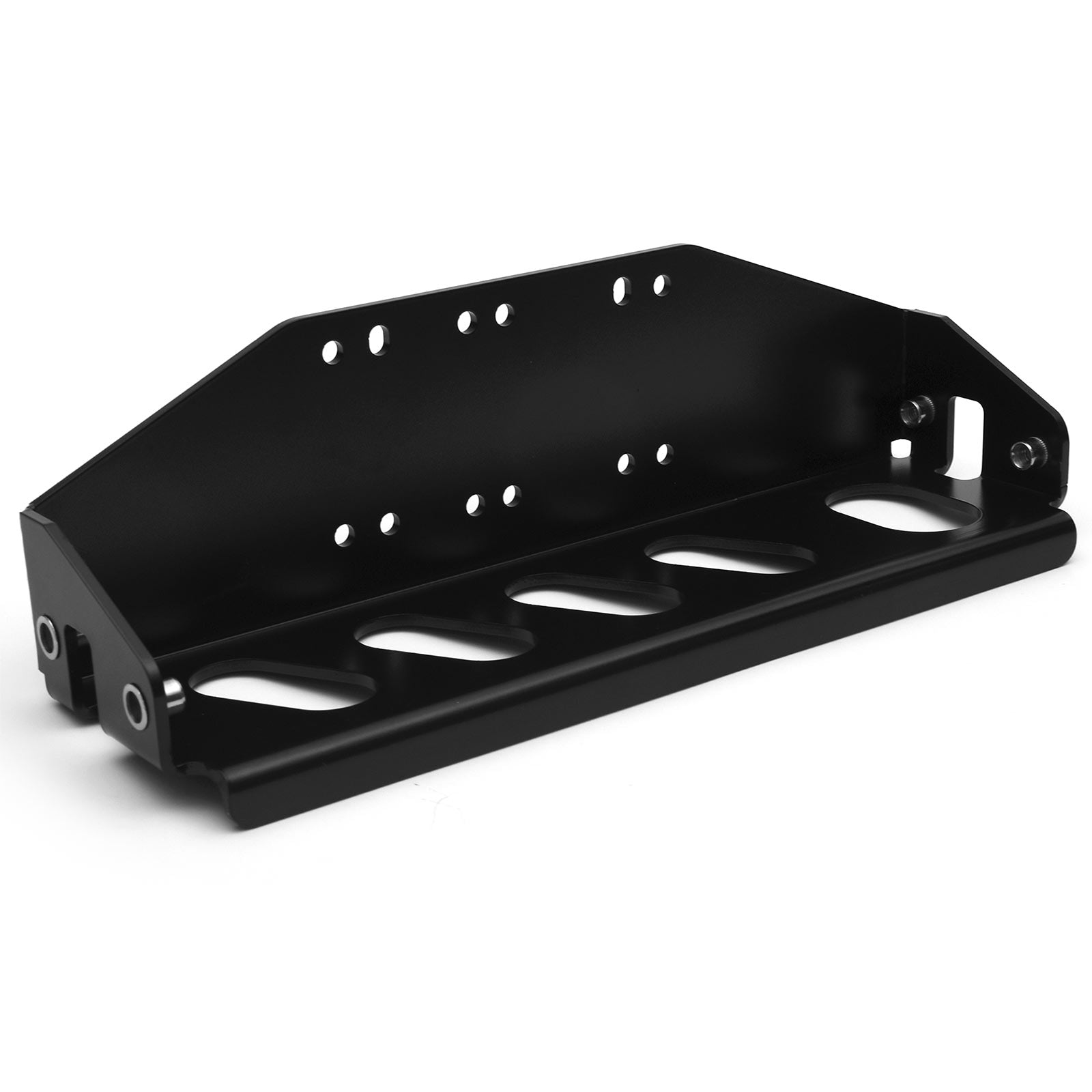

HEAVY DUTY UTV WINCH MOUNT BRACKET
This winch mount is constructed with 3/16" high-tensile strength steel
and powder coated for extreme durability.
Features:
- Heavy-Duty UTV Winch Mounting Plate for John Deere Gator
- Constructed with 3/16" High-Tensile Steel for High Durability
- Metal Bead Blasted and Powder Coated for Increased Strength
- Easy to Install- Mounting Hardware and Instructions Included
Specifications:
- Color: Black
- Material: 3/16" Steel
- Brand: Krator
- Condition: 100% Brand New
Fitment:
- John Deere Gator HPX 615E
- John Deere Gator HPX 815E
- John Deere Gator XUV 625i
- John Deere Gator XUV 825E
- John Deere Gator XUV 825i
- John Deere Gator XUV 825i S4
- John Deere Gator XUV 825M
- John Deere Gator XUV 825M S4
- John Deere Gator XUV 855D
- John Deere Gator XUV 855D S4
- John Deere Gator XUV 855E
- John Deere Gator XUV 855M
- John Deere Gator XUV 855M S4
(This mount will not work with the installation of the John Deere POWERtach Plow System)

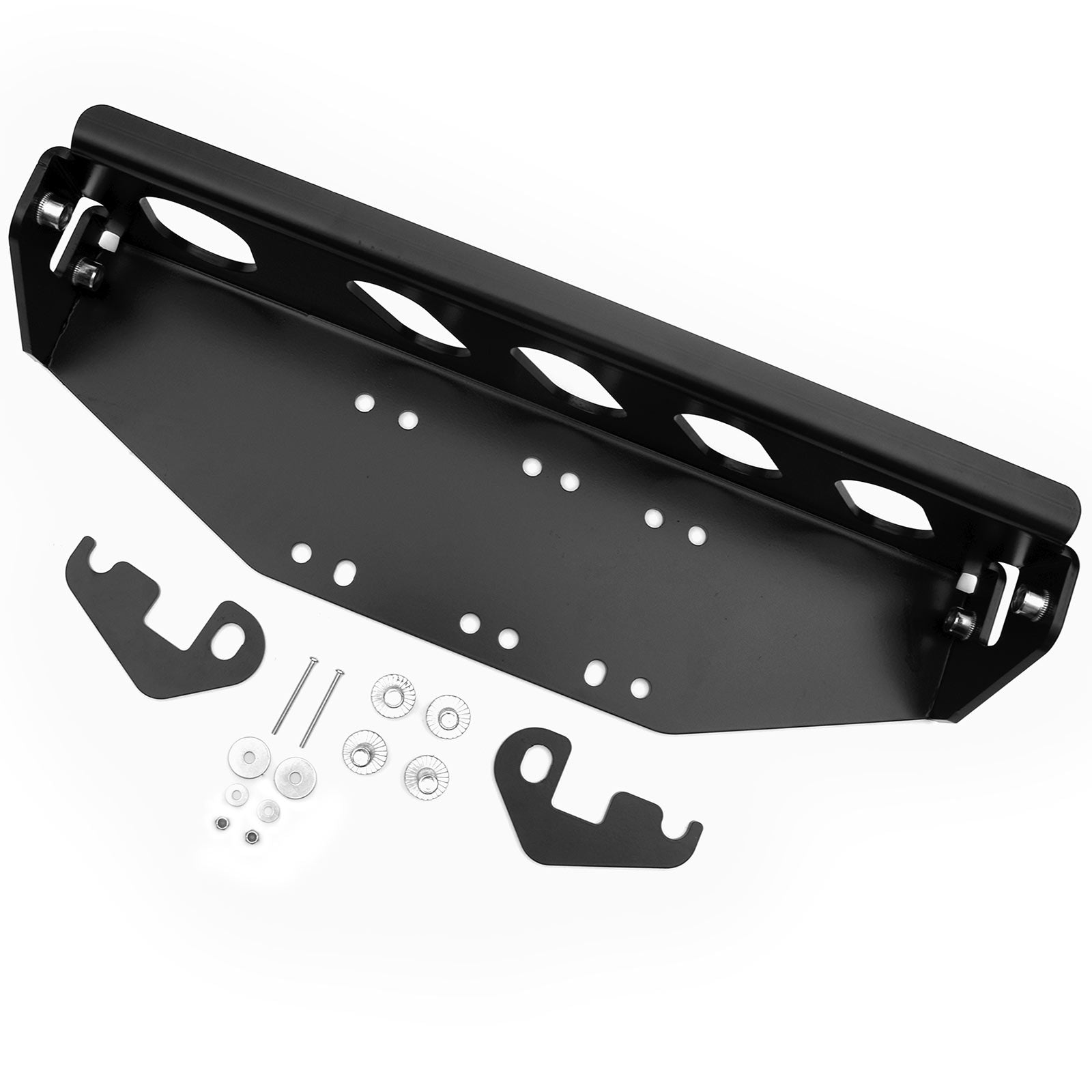

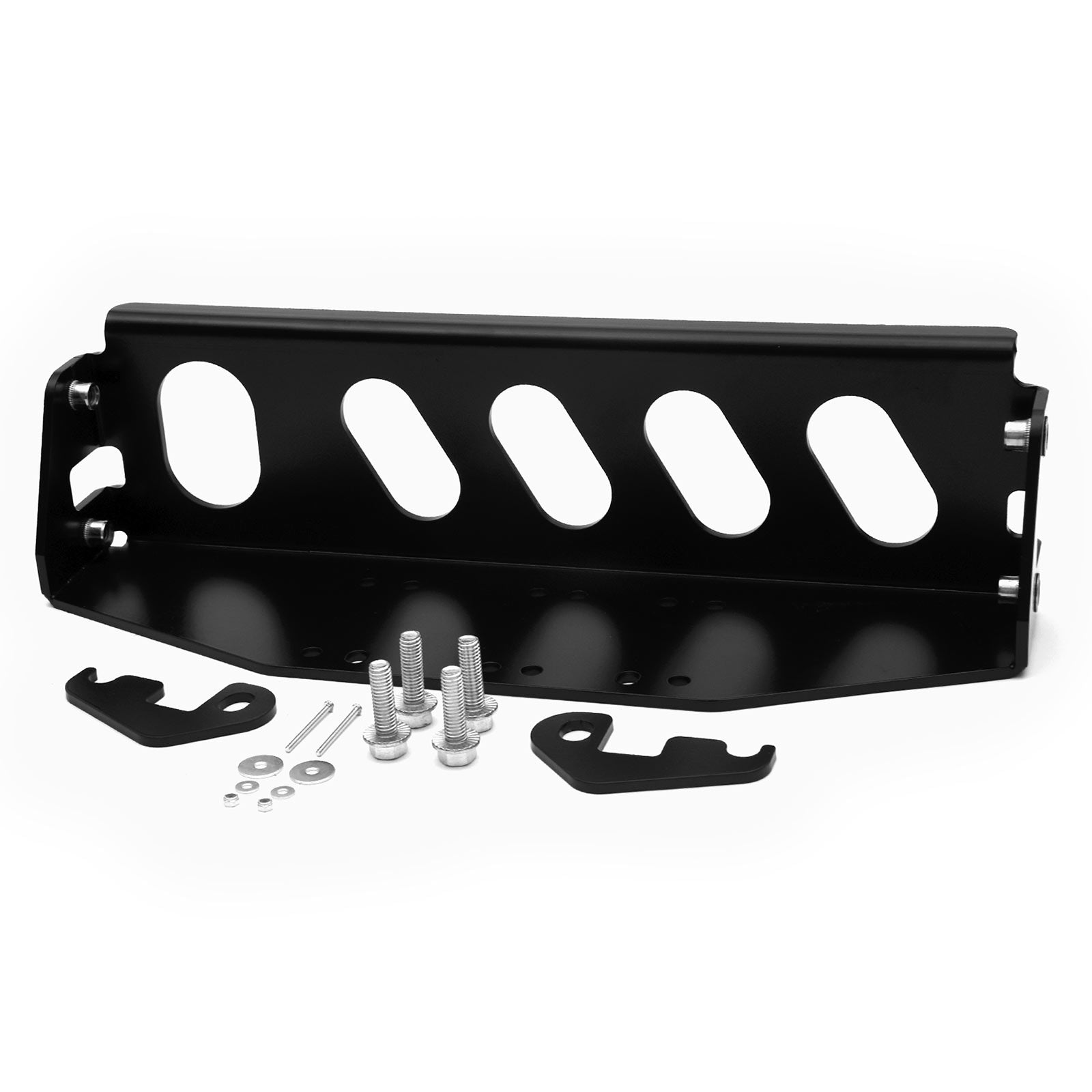

Package Includes:
- 1x Winch Mount
(Mounting Hardware and Instructions Included)
Compatible Winches:
- KFI: ST17, A2000, A2500-R2, A3000, U45-R2, U45w-R2, SE25, SE35, SE45-R2, SE45w-R2
- KFI: AS-50, AS-50w
- QUADBOSS: RP25, RP35
-
WARN: VRX 25, VRX 25-S, VRX 35, VRX 35-S
(Requires standard fairlead bracket) -
WARN: VRX 45, VRX 45-S
(Requires wide fairlead bracket) -
WARN: AXON 35, AXON 35-S, AXON 45RC
(Requires standard fairlead bracket) -
WARN: AXON 45, AXON 45-S, AXON 55, AXON 55-S
(Requires wide fairlead bracket) - WARN: A2000, A2500, U2500, 1.5ci, 2.5ci, 2.5ce, 3.0ci, 3.0ce, 3.0s
- WARN: RT15, RT25, RT30, XT15, XT25, XT30
- WARN: RT40, XT40
- WARN: Vantage 2000-3000lbs, Provantage 2500-3500lbs
- WARN: Vantage 4000lbs, Provantage 4500lbs
- RAMSEY: ATV2500, ATV3000
- SUPERWINCH: Terra25, Terra35, Terra 45, A3500, LT2000, LT2500, LT3000, LT4000ATV, LT4000/UTV
- MILE MARKER: PE2.5, PE 3.5, VMX2.5, PE2000, PE3000, PE2500, PE3500
- CYCLE COUNTRY: Work Power 1500 and 2500, Powermax 2500 and 3500
- BADLAND 2-Hole Winches: 68146, 61258, 61297, 61840
- BADLAND Standard Winches: 68145, 61604, 61257, 61383
- BADLAND WIDE Winches: 61384, 68144, 61605
- CHAMPION 2-Hole Winches: 10028, 10032, 12001, 12002, 12003, 12004, 13001, 13005, 100127, C20049, C20051, C20249, C30045, C30145
- CHAMPION Standard Winches: 10013, 10018, 10020, 10024, 12053, 12503, 12551, 13004, 13050, 13502, 14001, 14051, 14061, 14560, 100129, 100218, 100243, 100335
- CHAMPION WIDE Winches: 14008, 14501, 14551, 14552, 40252
- KEEPER CORP. TRAKKER: KT2500, KT3000, KT2500C, KT3000C, KT4000, KT4000C
-
KEEPER CORP. TRAKKER: KT2000
(Requires roller fairlead with a 4.875" bolt pattern) -
SMITTYBILT: XRC 2.0
(Requires roller fairlead with a 4.875" bolt pattern)
(Listed models come with incorrect ATV roller fairleads) - SMITTYBILT: XRC 3.0, XRC 4.0
-
XGEAR: X3000, X4000
(4-Hole Standard (3.00" x 4.875" bolt pattern) -
VENOM: 2000, 2500, 3000, 3500, 4000, 4500, 5000 (Hardcore
Series)
(All with 3.00" x 4.875" bolt pattern mount-up)
(All with 3.00" x 6.600" bolt pattern mount-up) - TRAVELLER: 1078311
-
TRAVELLER: 1078088, 1078302
(Requires roller fairlead with a 4.875" bolt pattern)
Other Possible Fitments with Standard Mounting Patterns
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole Wide (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
