Heavy-Duty UTV Winch Mount Bracket for 2003-2013 Yamaha Rhino 450 660 700 Models
Heavy-Duty UTV Winch Mount Bracket for 2003-2013 Yamaha Rhino 450 660 700 Models
Available in stock (90)

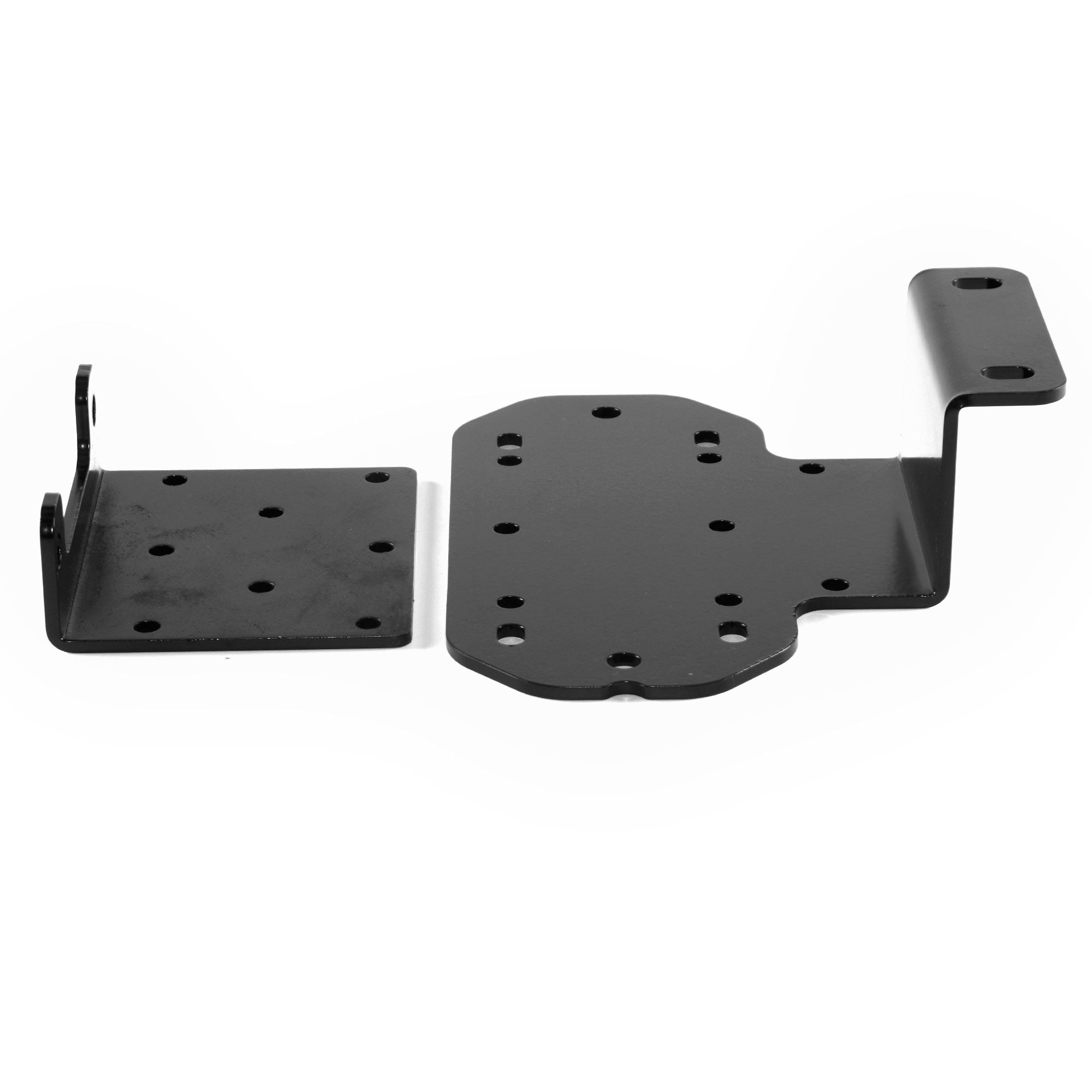

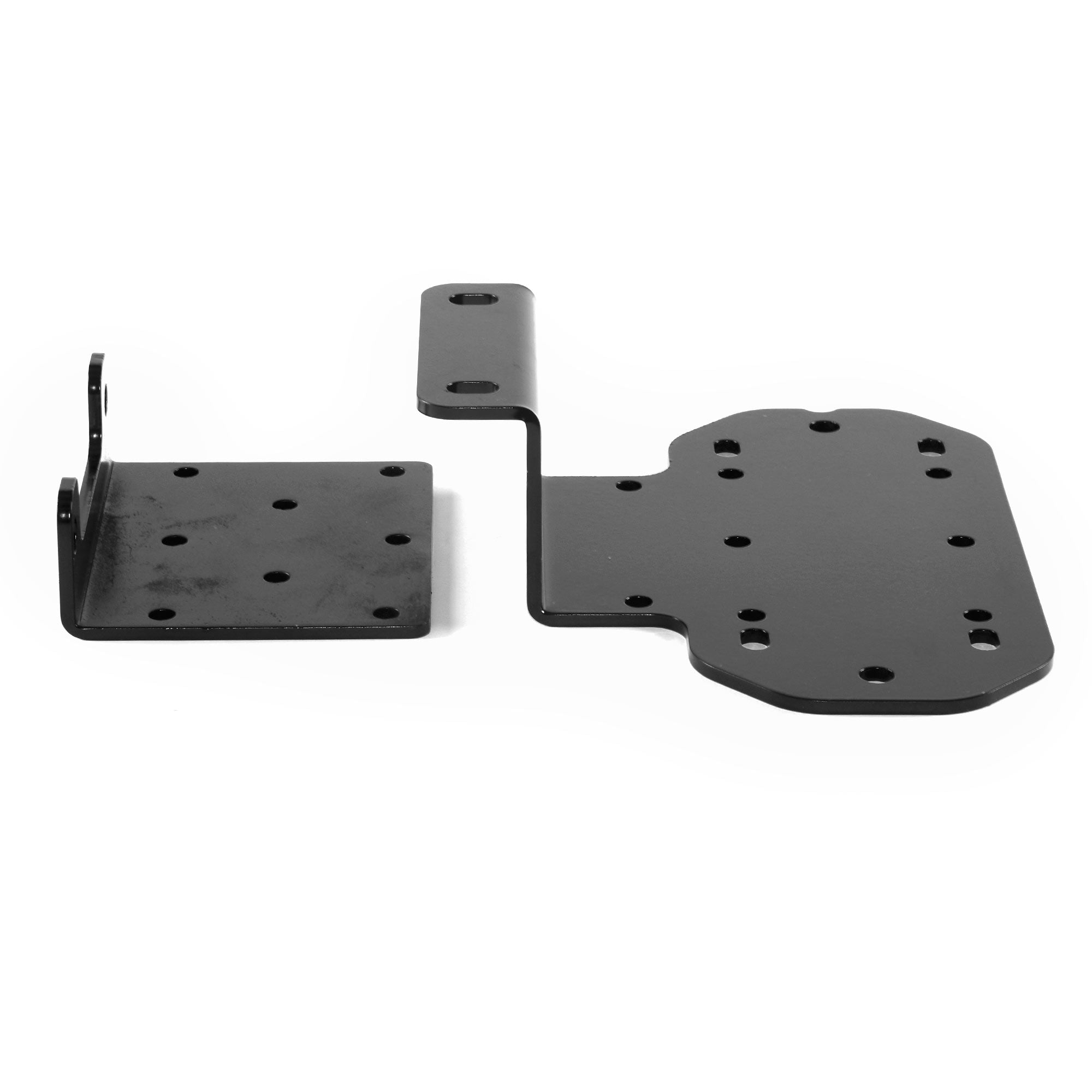

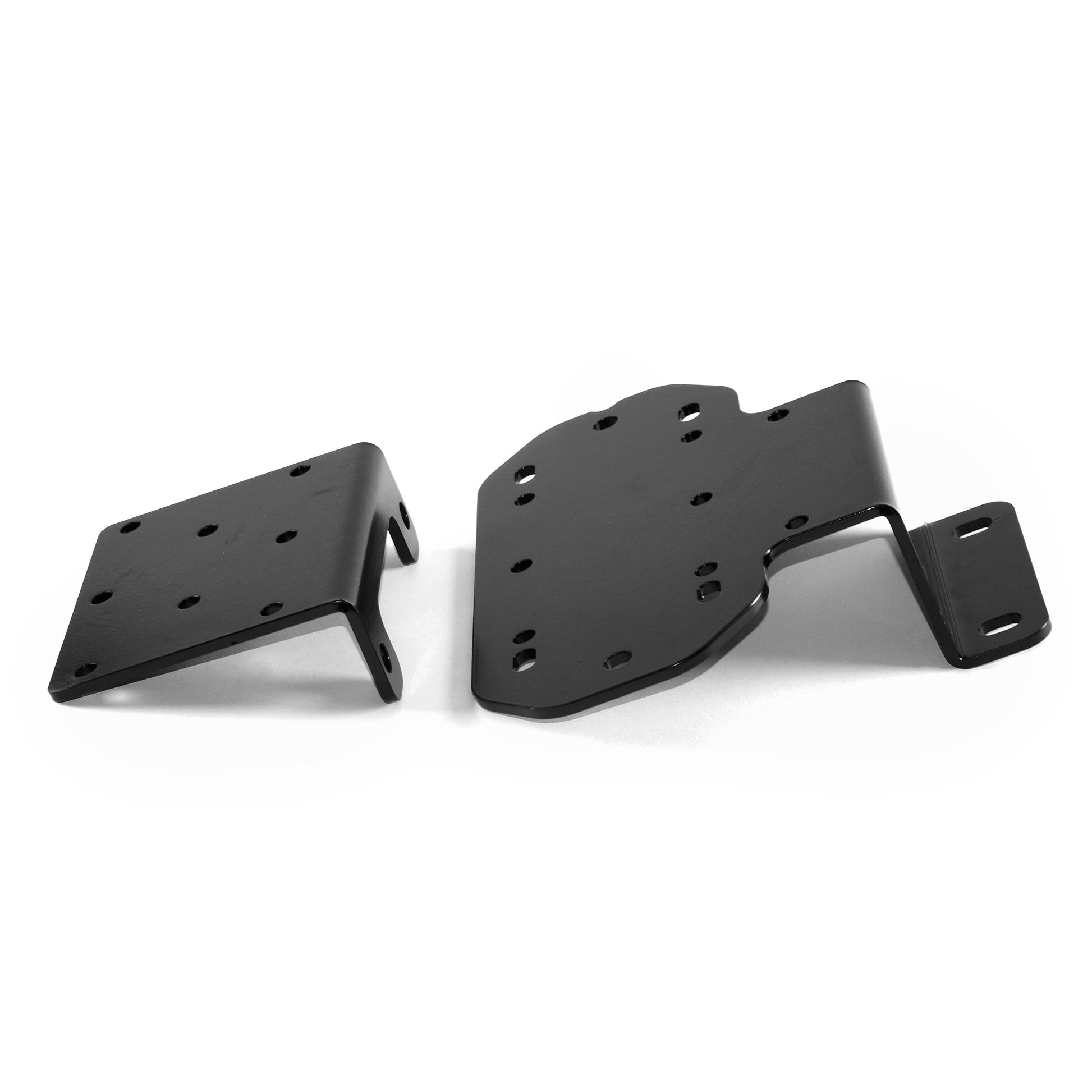

HEAVY DUTY UTV WINCH MOUNT BRACKET
This winch mount is constructed with 3/16" high-tensile strength steel
and powder coated for extreme durability.
Features:
- Heavy-Duty UTV Winch Mounting Plate Compatible with Yamaha Rhino
- Constructed with 3/16" High-Tensile Steel for High Durability
- Metal Bead Blasted and Powder Coated for Increased Strength
- Easy to Install- Mounting Hardware and Instructions Included
Specifications:
- Color: Black
- Material: 3/16" Steel
- Brand: Krator
- Condition: 100% Brand New
Fitment:
- Yamaha Rhino 450 2006-2011
- Yamaha Rhino 660 2003-2007
- Yamaha Rhino 700 2008-2013

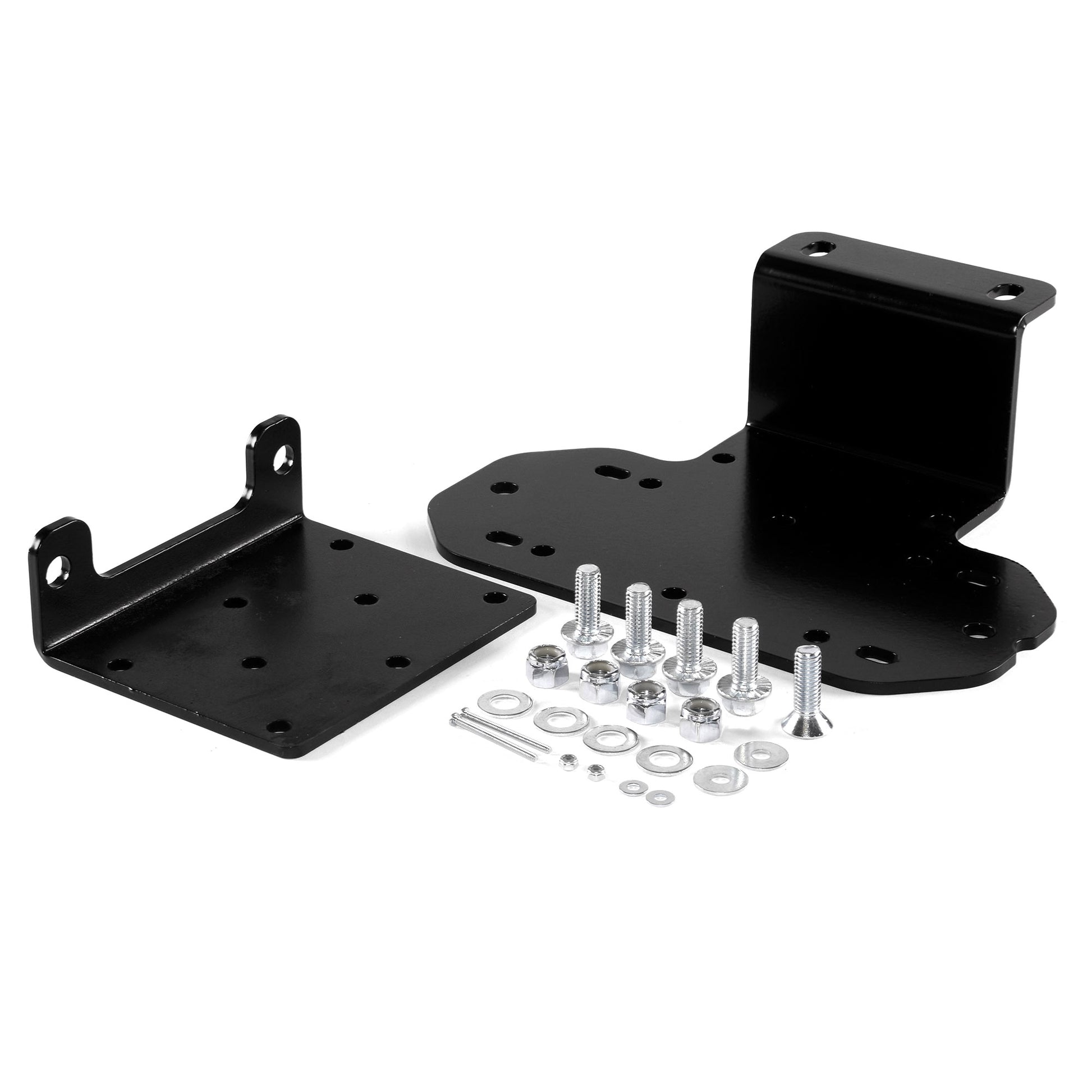

Package Includes:
- 1x Winch Mount
(Mounting Hardware and Instructions Included)
Compatible Winches:
- KFI:��ST17 , A2000 , A2500-R2 , A3000 , U45-R2 , U45w-R2 , SE25 , SE35 , SE45-R2 , SE45w-R2
- KFI:����AS-50 , AS-50w
- WARN: VRX 25 , VRX 25-S , VRX 35 , VRX 35-S
- WARN: VRX 45 , VRX 45-S
- WARN: A2000 , A2500 , U2500 , 1.5ci , 2.5ci , 2.5ce , 3.0ci , 3.0ce , 3.0s
- WARN: RT15 , RT25 , RT30 , XT15 , XT25 , XT30
- WARN: RT40 , XT40
-
WARN: Vantage 2000-3000lb��
(Will��NOT��work with Vantage 4000 due to motor lead orientation) - WARN: ProVantage 2500-4500lbs
- PRO VANTAGE: 3500 and 4500 will require lead rotation.
- WARN:VRX 25 , VRX 25-S , VRX 35 , VRX 35-S
- WARN: VRX 45 , VRX 45-S
- WARN: AXON 35 , AXON 35-S , AXON 45RC
- WARN:��AXON 45 , AXON 45-S , AXON 55 , AXON 55-S
- RAMSEY :��ATV2500 , ATV3000
- SUPERWINCH :��Terra25 , Terra35 , Terra 45 , A3500 , LT2000 , LT2500 , LT3000 , LT4000ATV , LT4000UTV
- MILE MARKER :PE2.5 , PE 3.5 , VMX2.5 , PE2000 , PE3000 , PE2500 , PE3500
- CYCLE COUNTRY :Work Power 1500 and 2500 , Powermax 2500 and 3500
- BADLAND��2-Hole Winches��:��68146 , 61258 , 61297 , 61840
- BADLAND��Standard Winches��:��68145 , 61604 , 61257 , 61383
- BADLAND��WIDE Winches��:��61384 , 68144 , 61605
- CHAMPION��2-Hole Winches��:��10028 , 10032 /��12001 /��12002 /��12003 /��12004 /��13001 /��13005 /��100127 /��C20049 /��C20051 /��C20249 /��C30045 /��C30145
- CHAMPION��Standard Winches��:��10013 , 10018 , 10020 , 10024 , 12053 , 12503 , 12551 , 13004 , 13050 , 13502 , 14001 , 14051 , 14061 , 14560 , 100129 , 100218 , 100243 , 100335
- CHAMPIONWIDE Winches��:��14008 , 14501 , 14551 , 14552 , 40252
- CHAMPION:14001 and 14061 , 14051 , 14560
- KEEPER CORP. TRAKKER :KT2500 , KT3000 , KT2500C , KT3000C , KT4000 , KT4000C
-
KEEPER CORP. TRAKKER :KT2000
(Requires roller fairlead with a 4.875" bolt pattern) -
SMITTYBILT :XRC 2.0
(Requires roller fairlead with a 4.875" bolt pattern)
(Listed models come with incorrect ATV roller fairleads) - SMITTYBILT :XRC 3.0 , XRC 4.0
-
XGEAR:����X3000 , X4000
(4-Hole Standard (3.00" x 4.875" bolt pattern) -
VENOM:��2000 , 2500 , 3000 , 3500 , 4000 , 4500 , 5000 (Hardcore
Series)
(All with 3.00" x 4.875" bolt pattern mount-up)
(All with 3.00" x 6.600" bolt pattern mount-up) - QUADBOSS:��RP25 , RP35
- Traveller: 1078311
-
Traveller: 1078088��, 1078302
(Requires roller fairlead with a 4.875" bolt pattern)
Possibly many others with the below standard mounting patterns, call to confirm. - 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
