Heavy-Duty ATV Winch Mount Bracket for 2016-2022 Honda Pioneer 1000 Models

HEAVY DUTY ATV WINCH MOUNT BRACKET
This winch mount is constructed with 3/16" high-tensile strength steel and powder coated for extreme durability.

Features:

• Heavy-Duty ATV Winch Mounting Plate for Honda Pioneer
• Constructed with 3/16" High-Tensile Steel for High Durability
• Metal Bead Blasted and Powder Coated for Increased Strength
• Easy to Install- Mounting Hardware and Instructions Included

Specifications:

• Color: Black
• Material: 3/16" Steel
• Brand: Krator
• Condition: 100% Brand New

Fitment:

• Honda Pioneer 1000 (all models Including the LE) 2016-2022
• Honda Pioneer 1000-5 (all models Including the LE) 2016-2022

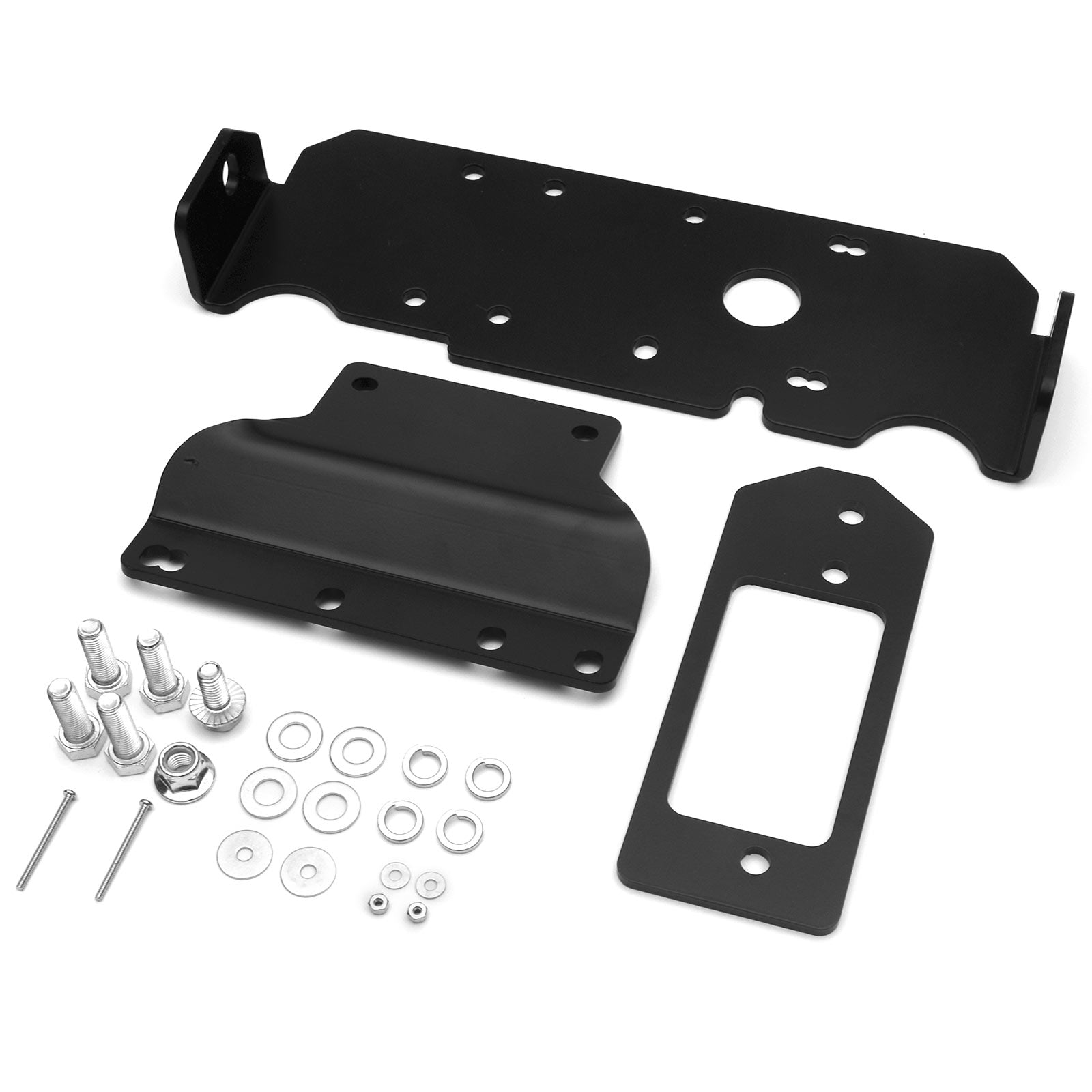

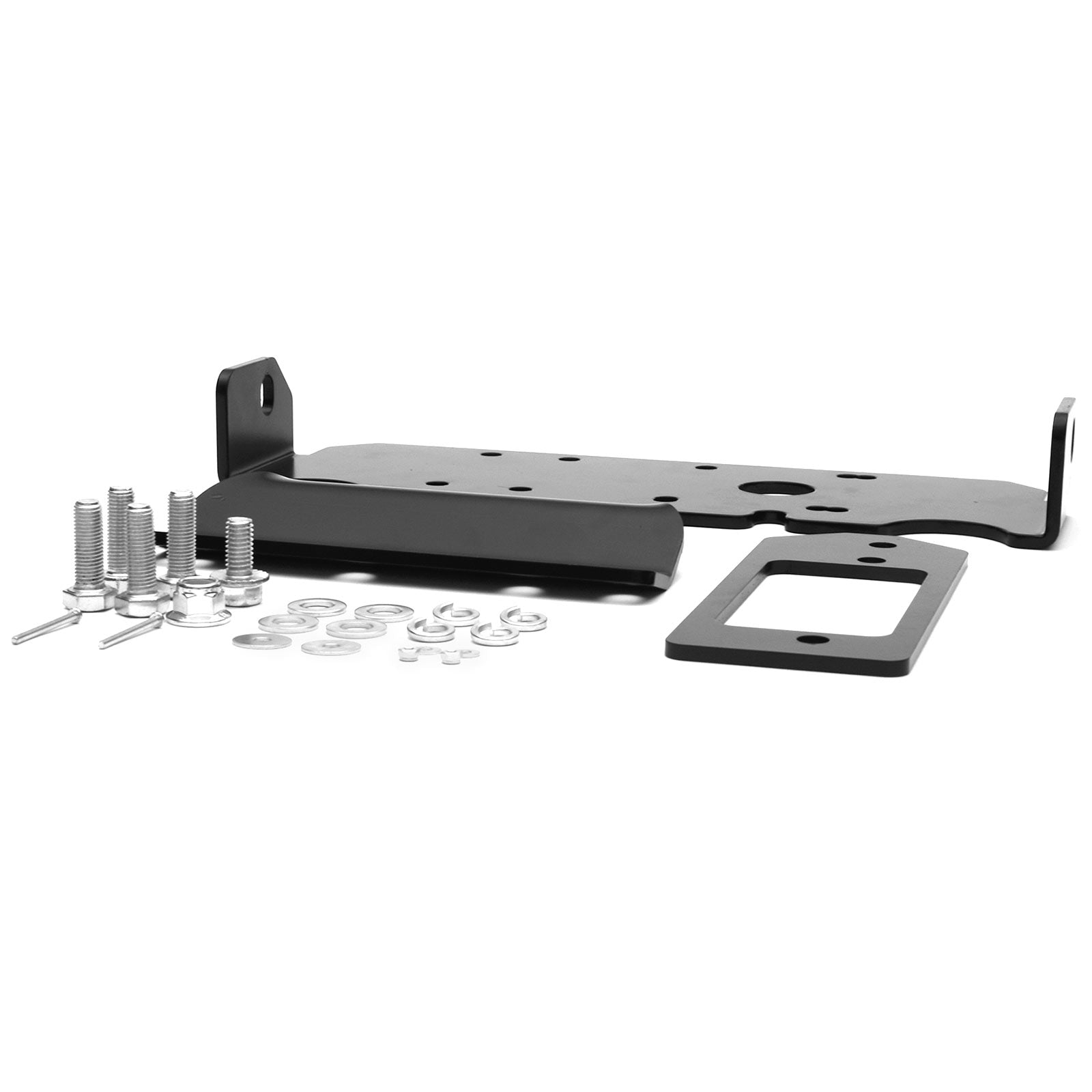

Package Includes:

• 1x Winch Mount
  (Mounting Hardware and Instructions Included)

Compatible Winches:

• KFI: ST17, A2000, A2500-R2, A3000, U45-R2, U45w-R2, SE25, SE35, SE45-R2, SE45w-R2, AS-50, AS-50w
• QUADBOSS: RP25, RP35
• WARN: AXON 35, AXON 35-S, AXON 45RC, AXON 45, AXON 45-S, AXON 55, AXON 55-S
• WARN: VRX 25, VRX 25-S, VRX 35, VRX 35-S, VRX 45, VRX 45-S
• WARN: A2000, A2500, U2500, 1.5ci, 2.5ci, 2.5ce, 3.0ci, 3.0ce, 3.0s
• WARN: RT15, RT25, RT30, XT15, XT25, XT30
• WARN: RT40, XT40
• WARN: Vantage 2000-4000lb
• WARN: ProVantage 2500-4500lbs
• RAMSEY: ATV2500, ATV3000
• SUPERWINCH: Terra25, Terra35, Terra 45, A3500, LT2000, LT2500, LT3000, LT4000ATV, LT4000UTV
• MILE MARKER: PE2.5, PE 3.5, VMX2.5, PE2000, PE3000, PE2500, PE3500, PE5000
• CYCLE COUNTRY: Work Power 1500 and 2500, Powermax 2500 and 3500
• BADLAND: 2-Hole, Standard, Wide Winches
• CHAMPION: 2-Hole, Standard, Wide Winches
• KEEPER CORP. TRAKKER: KT2500, KT3000, KT2500C, KT3000C, KT4000, KT4000C
• KEEPER CORP. TRAKKER: KT2000
  (Requires roller fairlead with a 4.875" bolt pattern)
• SMITTYBILT: XRC 2.0
  (Requires roller fairlead with a 4.875" bolt pattern)
  (Listed models come with incorrect ATV roller fairleads)
• SMITTYBILT: XRC 3.0, XRC 4.0
• XGEAR: X3000, X4000
  (4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000, 2500, 3000, 3500, 4000, 4500, 5000 (Hardcore Series)
  (All with 3.00" x 4.875" bolt pattern mount-up)
  (All with 3.00" x 6.600" bolt pattern mount-up)
• TRAVELLER: 1078311
• TRAVELLER: 1078088, 1078302
  (Requires roller fairlead with a 4.875" bolt pattern)

• 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
• 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
